MS46B-200061

MS46BP0N0764-082N011A0A00

Linear Unit, Micro Stage, Continuously Supported MicroStage System, Lead Screw drive, Ball Guided, Preloaded Ball Screw, 621 mm Stroke, 5 mm Lead,

Compact, lightweight package

Stainless steel leadscrew with anti-backlash nut offers precise
repeatability

Segmented linear bearings provide smooth motion

Corrosion resistant options available

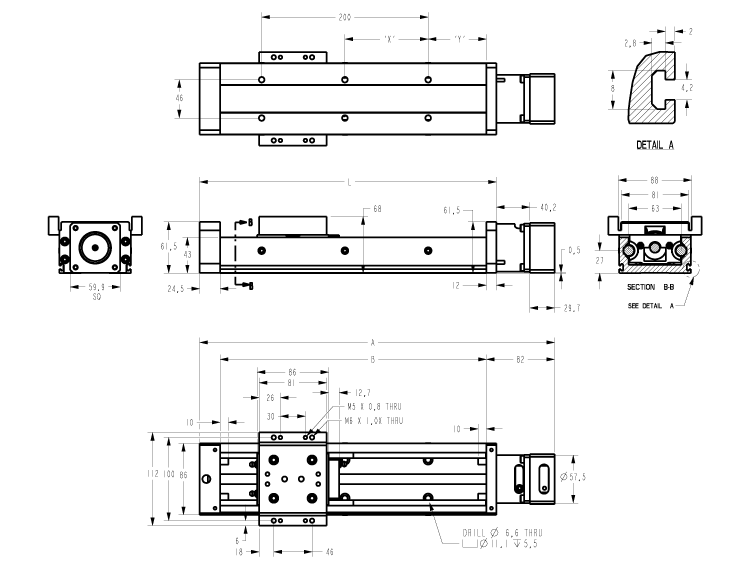

{tab title="DIMENSIONS" }

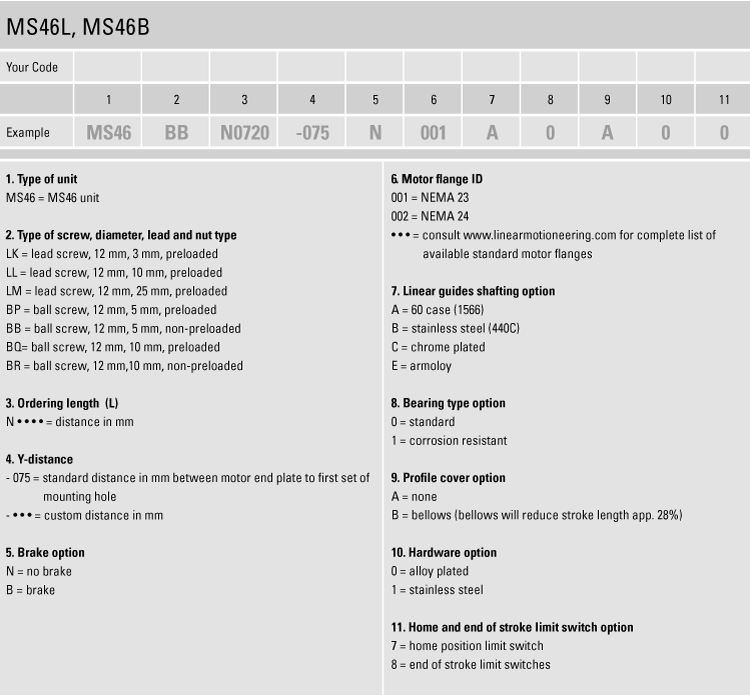

{tab ORDER CODE}

{tab TOOLS & LINKS}

Catalog page
